Lenovo WenTian WR5228 G5
Lenovo WenTian WR5228 G5 is a 2U dual-socket Intel Xeon 6 server with 32 DDR5 DIMM slots, support for up to 8TB of memory, and multiple GPU and storage configurations. Confirm the CPU, memory operating speed, expansion cards and cooling for the specific order configuration.
- Intel Xeon 6, up to 2 CPUs and up to 144 E-cores or 86 P-cores per CPU
- 32 DDR5 slots, up to 8TB; dedicated documentation lists up to 8800 MT/s
- Up to 18 standard PCIe slots plus 2 OCP 3.0 slots; verify generation-specific counts
- Up to 16 single-width or 4 double-width GPUs; validate the exact GPU and configuration
- Redundant CRPS power supplies, with options up to 3200W
Published model specifications describe available options, not the delivered configuration.
Configurations & prices
Contact our team to confirm the configuration and quotation.
Listed prices are indicative; confirm tax, stock, compatibility, lead time and service in a written quotation.
Specifications & selection notes
Processors
| Platform and count | Up to 2 Intel Xeon 6 processors, with up to 144 E-cores or 86 P-cores per CPU; maximum platform CPU TDP is 350W. Validate each specific processor SKU |
|---|
Memory
| Slots and capacity | 32 onboard DDR5 DIMM slots, supporting RDIMM/MRDIMM and up to 8TB using 32 × 256GB 3DS RDIMMs; do not assume different memory types can be mixed |
|---|---|
| Published data-rate limit | Up to 8800 MT/s; actual operating speed depends on the CPU, memory type and population rules. Confirm the order BOM |
| CXL expansion | Optional CXL 2.0 memory expansion, officially listed as up to 16 expansion memory modules and 2TB; not standard equipment |
Storage
| Drive bays | Up to 20 × 3.5-inch or 45 × 2.5-inch drives; up to 36 U.2 NVMe, or 48 E3.S 1T/16 E3.S 2T drives. Validate combinations and coexistence against the specific BOM |
|---|---|
| Boot drives and controllers | Up to 2 SATA/NVMe M.2 drives; optional 8/16/32-port hardware RAID or 8/16-port SAS HBAs, subject to option validation |
Expansion and GPUs
| PCIe/OCP | Up to 18 standard PCIe slots, 2 OCP 3.0 slots and 1 dedicated SATA connector-card slot; confirm PCIe generations and available slots for the selected risers |
|---|---|
| GPU support | Dedicated documentation lists up to 16 single-width or 4 double-width GPUs and up to 600W per GPU. Validate the exact GPU, power, cooling, riser and drive layout; maximum limits are not guaranteed simultaneously |
Power, cooling and management
| Power supplies | Redundant CRPS power supplies with Platinum/Titanium options up to 3200W; separate -48V DC or 336V HVDC options require validation of the exact power-supply part |
|---|---|
| Cooling | The dedicated brochure lists 4 model 8056/8038 fans and optional CPU/GPU/memory liquid cooling; validate the specific cooling BOM and facility requirements separately |
| Management | Lenovo BMC and management software; validate TPM 2.0/TCM 1.0 and PFR against the selected modules and configuration |
Documentation scope
| Chassis dimensions and weight | Subject to the specific BOM and chassis documentation |
|---|
Manufacturer documentation and purchasing checks
| Limited warranty | The dedicated brochure lists 3-year 7×24×4 nationwide onsite limited warranty and installation services. Warranty coverage, response terms and delivery services depend on the serial number, purchased service and contract. |
|---|
Documentation and configuration scope
| Model documentation scope | As reviewed on 2026-10-28, specifications use the dedicated WR5228 G5 website and brochure. Applicability of the WR5220 G5 LP2014 guide is unconfirmed; dimensions, weight and detailed operating conditions require documentation for this model |
|---|---|
| Official product page | https://biz.lenovo.com.cn/product/01205094F08.html |

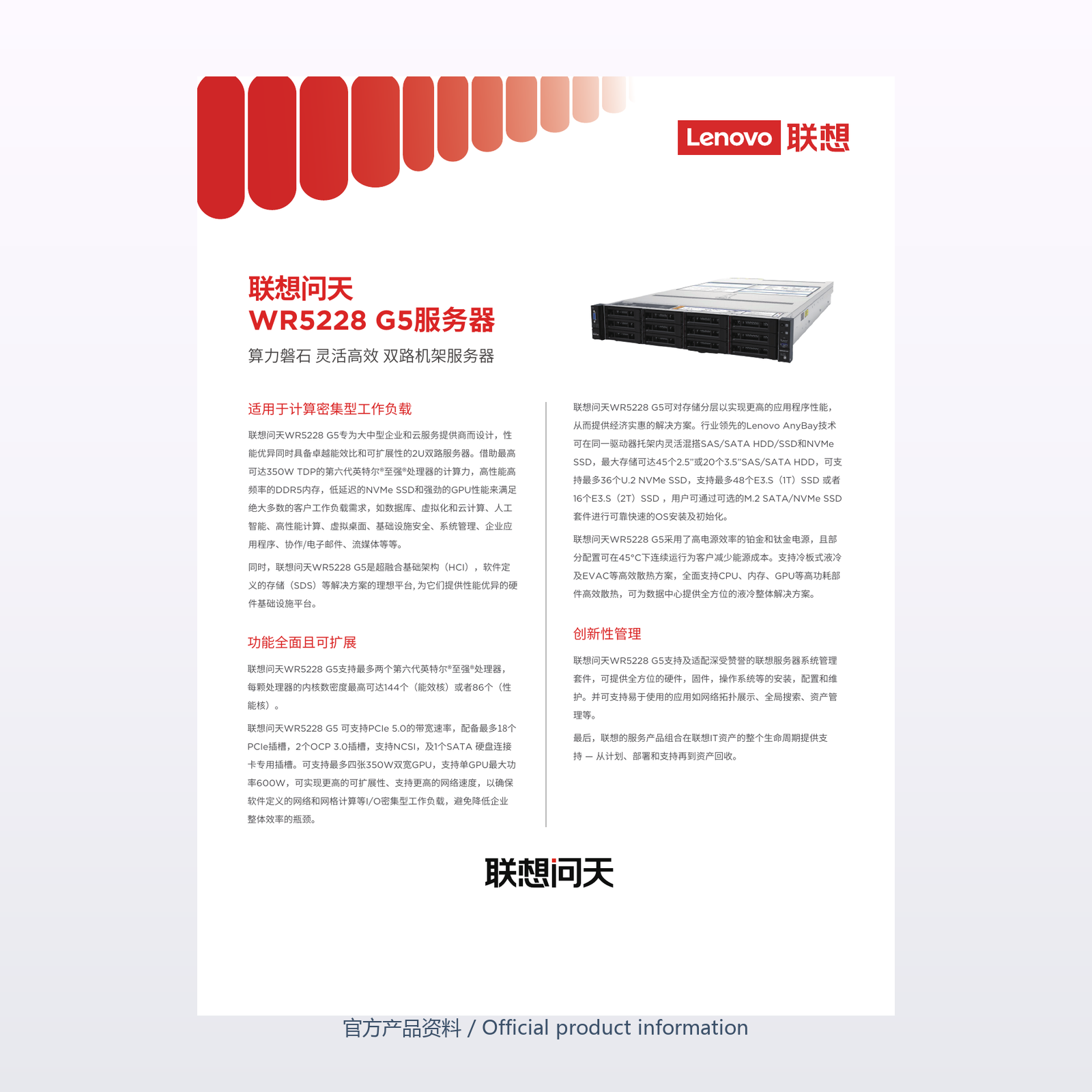

| Product brochure | https://p1.lefile.cn/fes/cms/2026/04/03/1jtdwa4wiouq7g4b69zgc4kqely55x111397.pdf |

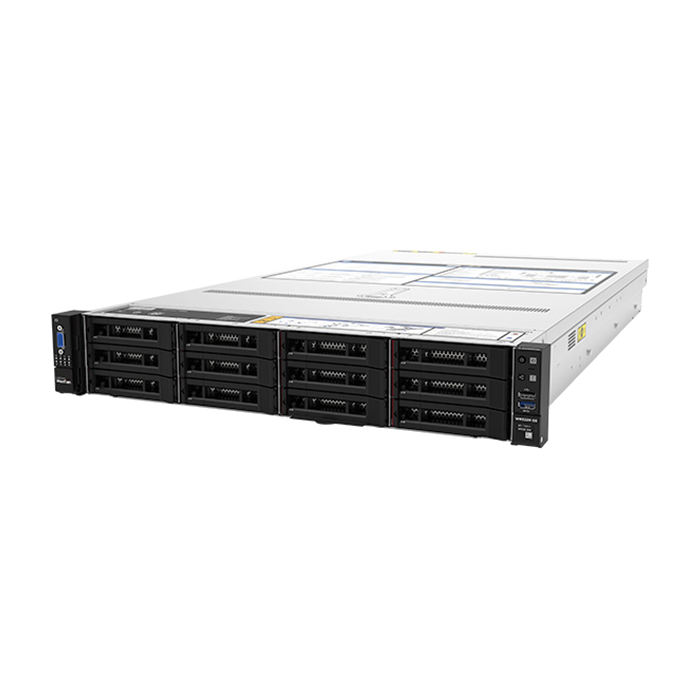

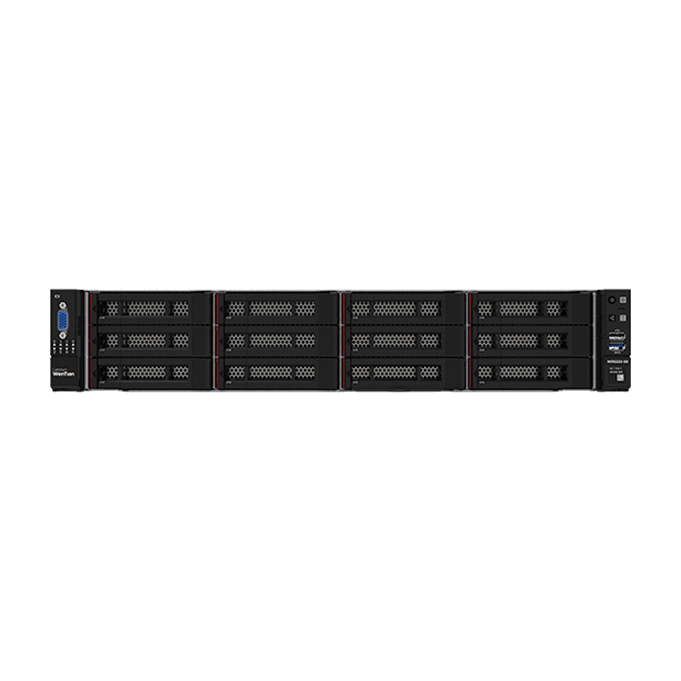

Product images
Images are references. Components, interfaces and the delivered configuration are specified in the quotation.
